Backrest Upholstery Progress Standard for KaVo 1058, E50, E30 and 3310
Product number:
537023P.317
Backrest Upholstery Progress Standard for KaVo 1058, E50, E30 and 3310
Product number:
537023P.317
€338.00*
Available in 10 days, delivery time 1-3 days
Item Description
Backrest Upholstery “Progress Standard” for KaVo Primus 1058, ESTETICA E50, ESTETICA E30 and SYSTEMATICA 3310
- Custom-fit replacement upholstery for your dental unit.
- Made in Germany from high-quality materials.
- Durable and easy to clean.
- Available in the standard original colors and, upon request, in many other shades.
- Easy installation with no downtime thanks to a precise fit.
Help with Color Selection
- Original Manufacturer Colors: Only original manufacturer colors are displayed in our shop. To see the manufacturer name and manufacturer number (if available) for a color, simply select the desired color. This information will then appear below the "ADD ITEM TO CART" button on the "ADD COLOR SAMPLE TO CART" button.
- Important Note on Color Representation: Please note that colors on screens can vary and may look different depending on the light source. We therefore strongly recommend matching the color beforehand. If in doubt, always request free samples via the "ADD COLOR SAMPLE TO CART" button to precisely match the color with your existing upholstery.
Attention! The right of return is excluded for custom-made upholstery ordered in the wrong color. - Complete Replacement: If you are replacing the upholstery of an entire dental unit or dental chair, you are flexible in your color choice. You can choose any manufacturer's color or even from our entire current color collection to ensure the new color of your upholstery harmonizes with the color ambiance of your practice rooms.
- Partial Replacement: If only a single piece of upholstery on your dental unit or dental chair is being replaced, an exact color match is crucial. If you know the exact manufacturer's color name, you can order your upholstery directly from the shop. If the color name is unclear, please be sure to request free samples for color matching.
- Further Questions on Color Selection? If you have any questions about color determination, we are always happy to help. Simply contact us – we'll be glad to assist you!

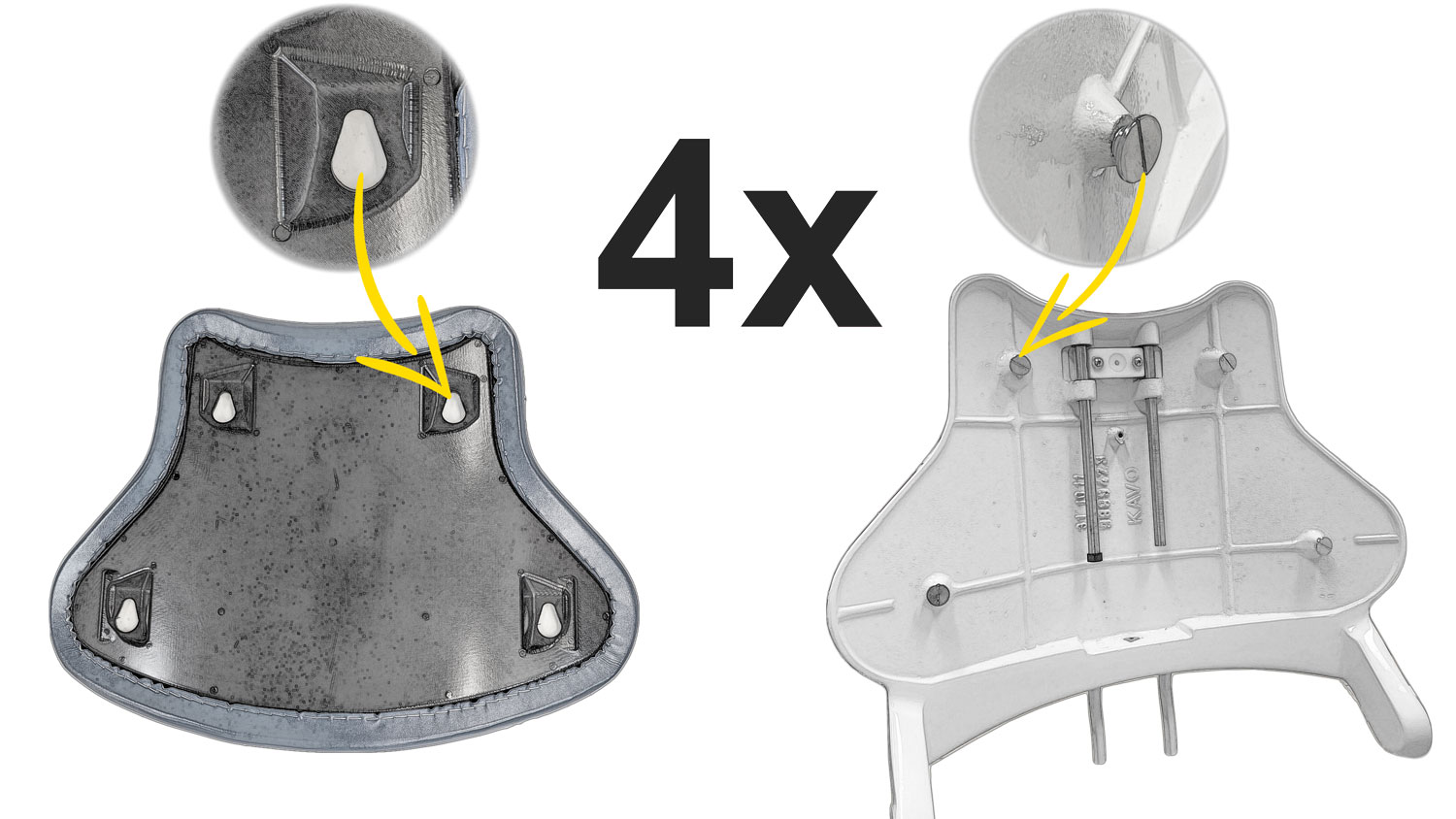

The disassembly and subsequent reassembly of the backrest upholstery is carried out via a well-thought-out keyhole hanging system with a total of four fixation points Please proceed step by step as follows:
- Lightly press the backrest upholstery against the upholstery mount of the dental unit and simultaneously slide it upward evenly.
- Through this upward movement, the four flat-head screws located on the frame slide out of the narrow and fixing area of the keyhole-shaped mounting eyelets into the wider area.
- As soon as the flat-head screws are seated in the wide part of the eyelets, the old backrest upholstery can easily be removed completely from the frame toward the front.
Step 2: Cleaning
- Take the opportunity with the upholstery removed to thoroughly clean and disinfect the edges of the upholstery mount on the chair before the new upholstery is attached.
Step 3: Installation
- Position the new upholstery in the upper area as well as on the side wings.
- Guide the four flat-head screws of the frame specifically into the wide openings of the keyhole-shaped eyelets on the back of the upholstery.
- Then slide the upholstery downward evenly with light pressure until it noticeably clicks into place and the outer contours fit properly.
Important tips
- If the flat-head screws do not easily enter the wide eyelet openings when positioning, simply unscrew the corresponding flat-head screws on the chair frame a small turn (counterclockwise) until insertion is effortless.
- Since all four fixation points must engage at the same time, several attempts are sometimes necessary. Take some time until the upholstery is correctly fixed at all four points, rests without play and fits perfectly all around.
