Backrest Upholstery Comfort for KaVo Estetica E70 and E80
Product number:
444023C.268
Backrest Upholstery Comfort for KaVo Estetica E70 and E80
Product number:
444023C.268
€338.00*
Available in 10 days, delivery time 1-3 days
Item Description
Backrest Upholstery "Comfort" for the KaVo ESTETICA E70 and E70 dental unit models
- Custom-fit replacement upholstery for your dental unit.
- Made in Germany from high-quality materials.
- Durable and easy to clean.
- Available in the standard original colors and, upon request, in many other shades.
- Easy installation with no downtime thanks to a precise fit.
Help with Color Selection
- Original Manufacturer Colors: Only original manufacturer colors are displayed in our shop. To see the manufacturer name and manufacturer number (if available) for a color, simply select the desired color. This information will then appear below the "ADD ITEM TO CART" button on the "ADD COLOR SAMPLE TO CART" button.
- Important Note on Color Representation: Please note that colors on screens can vary and may look different depending on the light source. We therefore strongly recommend matching the color beforehand. If in doubt, always request free samples via the "ADD COLOR SAMPLE TO CART" button to precisely match the color with your existing upholstery.
Attention! The right of return is excluded for custom-made upholstery ordered in the wrong color. - Complete Replacement: If you are replacing the upholstery of an entire dental unit or dental chair, you are flexible in your color choice. You can choose any manufacturer's color or even from our entire current color collection to ensure the new color of your upholstery harmonizes with the color ambiance of your practice rooms.
- Partial Replacement: If only a single piece of upholstery on your dental unit or dental chair is being replaced, an exact color match is crucial. If you know the exact manufacturer's color name, you can order your upholstery directly from the shop. If the color name is unclear, please be sure to request free samples for color matching.
- Further Questions on Color Selection? If you have any questions about color determination, we are always happy to help. Simply contact us – we'll be glad to assist you!
Assembly Instructions: Backrest Upholstery Replacement "Comfort" for KaVo ESTETICA E70 and ESTETICA E80

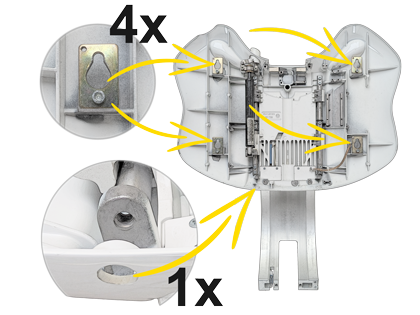

The backrest upholstery is hooked into the keyhole-shaped mounting eyelets of the chair frame via four rear retaining bolts and is firmly held in position at the bottom by a locking screw.
ATTENTION! It is imperative that you insert the Allen key into the designated opening on the right-hand side. Although there is an identical opening on the left-hand side, there is no screw. Behind it, however, lie sensitive technical components that could be damaged if the tool is pushed through incorrectly!
IMPORTANT! Only unscrew the Allen screw until it is flush with the edge of the frame. Do not unscrew it completely, as repositioning and screwing it back in is extremely difficult in the tight housing.
Step 2: By loosening the locking screw, the locking tab attached to the upholstery is released and the upholstery can be moved. Now press the entire backrest upholstery down firmly but evenly. This causes the four retaining bolts to slide out of the narrow section of the keyhole-shaped mounting eyelets into the wider section. As soon as the bolts are seated in the wide part of the eyelets, the backrest upholstery can easily be removed forwards from the frame.
Supplementary Product Recommendations
Step 3: The installation of the new backrest upholstery then takes place in reverse order: Place the upholstery with the four bolts into the wide openings of the eyelets, push it upwards until the locking tab is correctly positioned at the bottom, and fix it again hand-tight with the 4 mm Allen screw from the right-hand side.
- All other upholstery for KaVo dental units in the complete overview.
- Do you need the appropriate cleaning and care products for your new upholstery? Here is our range of care products.
